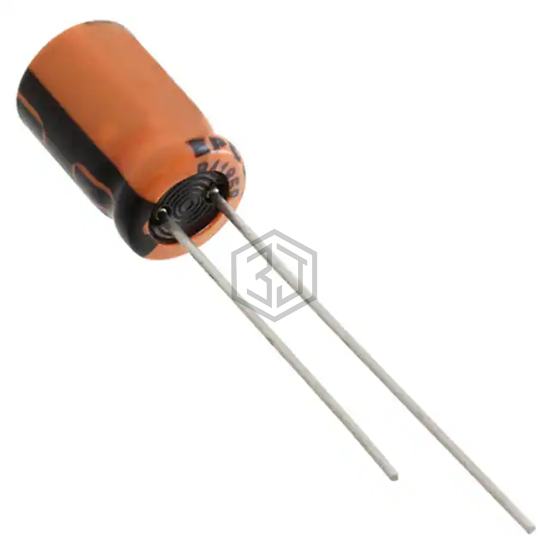

CAP ALUM 22UF 20% 100V RADIAL
B41858C9226M8 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.222Ohm @ 10kHz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 205 mA @ 100 kHz |
| Impedance | 1.114 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-2AHG220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V RADIAL | 97% | View |
| ELXV101ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 80% | View |
| MAL211658229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 73% | View |
| UBW2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 72% | View |
| UBX1V220MPL1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 71% | View |
| UBW1J220MPD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 63% | View |
Submit your RFQ for B41858C9226M8 and get a quote within 24 hours.
