Panasonic Electronic Components
CAP ALUM 22UF 20% 100V RADIAL

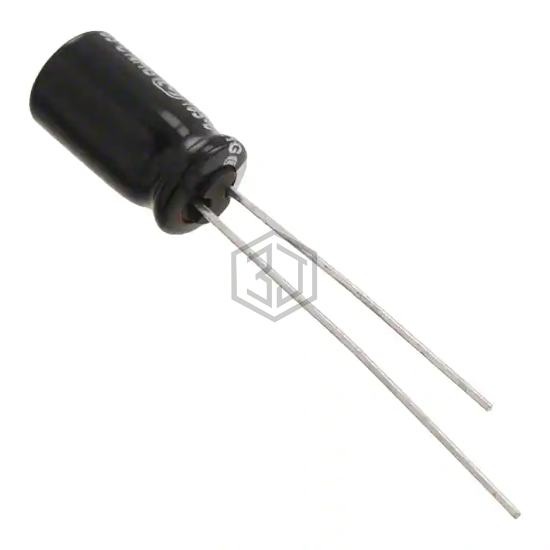

ECA-2AHG220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,531
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 186 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D226F100CD4D | Vishay Sprague | CAP ALUM 22UF 100V RADIAL | 100% | View |
| B41858C9226M8 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 100V RADIAL | 97% | View |
| MAL211938229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 63V AXIAL | 76% | View |
| UBX1V220MPL1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 75% | View |
| UBX2A220MPL1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 65% | View |
| EKMG500ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 50V RADIAL | 59% | View |
