CAP ALUM 100UF 20% 25V SMD

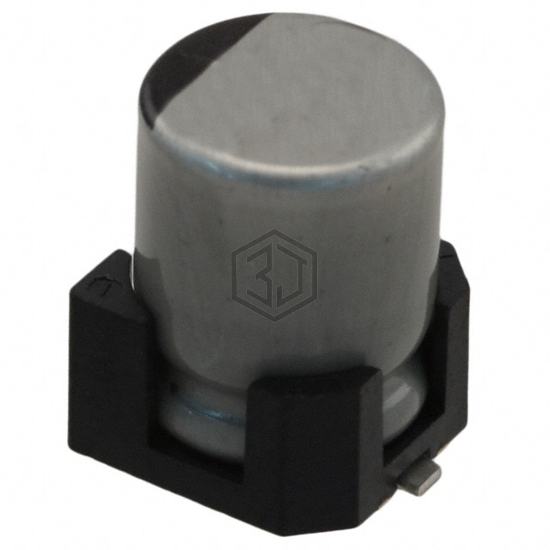

UBC1E101MNS1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,999
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 73.7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UBC1E101MNS1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ101M1ETR-0810S | SURGE | CAP ALUM 100UF 20% 25V SMD | 100% | View |
| UBC1V101MNS1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 86% | View |
| UBC1C101MNS1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 86% | View |
| VUJ101M1VTR-1010S | SURGE | CAP ALUM 100UF 20% 35V SMD | 83% | View |
| VUJ101M1CTR-0810S | SURGE | CAP ALUM 100UF 20% 16V SMD | 82% | View |
| UBH1V101MNS1GS | Nichicon | CAP ALUM 35V POLAR | 75% | View |
