IC PWR SWITCH N/P-CH 1:2 10TDFN

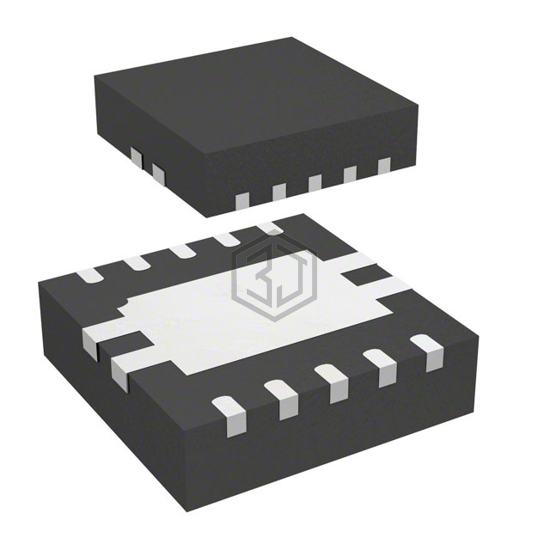

PI5PD2561ZEEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N/P-CH 1:2 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.5V ~ 5.5V, package / case 10-VFDFN Exposed Pad.
In Stock: 2,772
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | N/P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 44mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-TDFN (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
PI5PD2561ZEEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5PD2560ZEEX | Diodes Incorporated | IC PWR SWITCH N/P-CH 1:2 10TDFN | 100% | View |
| PI5PD2561ZEE | Diodes Incorporated | IC PWR SWITCH N/P-CH 1:2 10TDFN | 100% | View |
| AP22815BWT-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT25 | 77% | View |
| AP22815AWT-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT25 | 77% | View |
| AP22615BWU-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT26 | 77% | View |
| AP22615AWU-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT26 | 77% | View |
Submit your RFQ for PI5PD2561ZEEX and get a quote within 24 hours.
