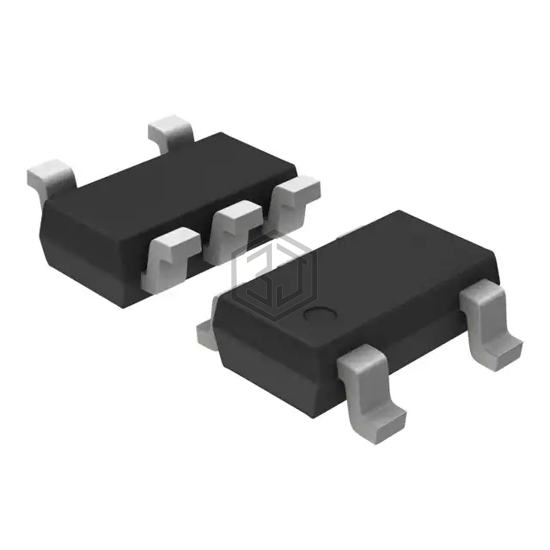

IC PWR SWTCH N/P-CHAN 1:1 TSOT25
AP22815BWT-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWTCH N/P-CHAN 1:1 TSOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 8,712
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N/P-Channel |
| Interface | On/Off |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 40mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-25 |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP22815AWT-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT25 | 100% | View |
| AP22615BWU-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT26 | 100% | View |
| AP22615AWU-7 | Diodes Incorporated | IC PWR SWTCH N/P-CHAN 1:1 TSOT26 | 100% | View |
| MP62260DS-1-LF-P | Monolithic Power Systems Inc. | NRFND: USE MP5073, MP5075, MP507 | 82% | View |
| BTM7741G | Infineon Technologies | BTM7741 - INTEGRATED FULL-BRIDGE | 58% | View |
| BTM7710GPXT | Infineon Technologies | BTM7710 - INTEGRATED FULL-BRIDGE | 58% | View |
Submit your RFQ for AP22815BWT-7 and get a quote within 24 hours.
