IGBT600V-XITO-220AB

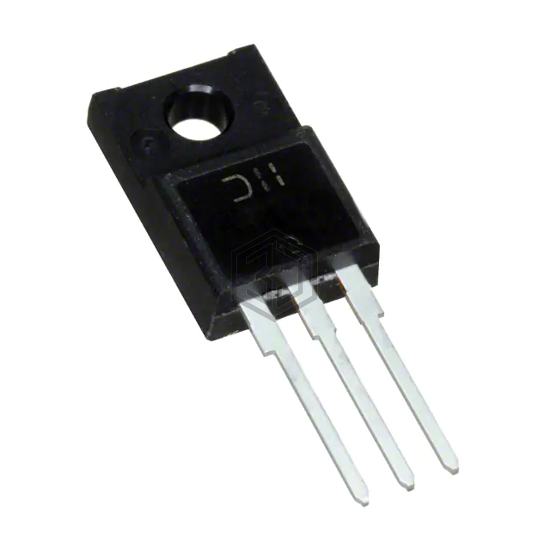

DGTD65T15H2TF is a Transistors - IGBTs - Single manufactured by Diodes Incorporated. IGBT600V-XITO-220AB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, Isolated Tab, current - collector (ic) (max) 30 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 15A |
| Power - Max | 48 W |
| Switching Energy | 270µJ (on), 86µJ (off) |
| Input Type | Standard |
| Gate Charge | 61 nC |
| Td (on/off) @ 25°C | 19ns/128ns |
| Test Condition | 400V, 15A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 150 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB |
Submit your RFQ for DGTD65T15H2TF and get a quote within 24 hours.
