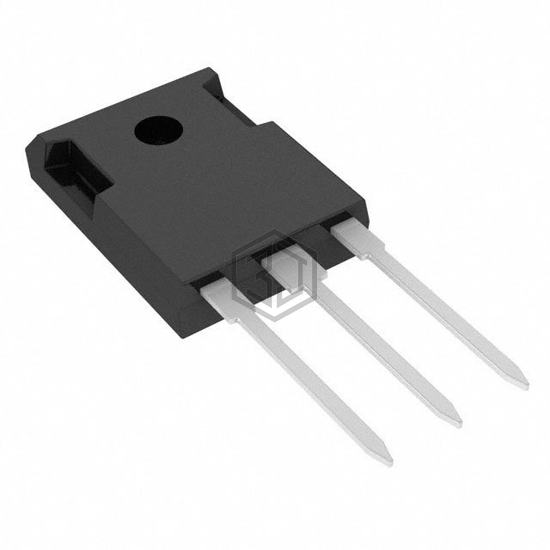

IGBT 1200V-X TO247 TUBE 0.45K
DGTD120T25S1PT is a Transistors - IGBTs - Single manufactured by Diodes Incorporated. IGBT 1200V-X TO247 TUBE 0.45K. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 50 A.
In Stock: 3,616
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Power - Max | 348 W |
| Switching Energy | 1.44mJ (on), 550µJ (off) |
| Input Type | Standard |
| Gate Charge | 204 nC |
| Td (on/off) @ 25°C | 73ns/269ns |
| Test Condition | 600V, 25A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for DGTD120T25S1PT and get a quote within 24 hours.
