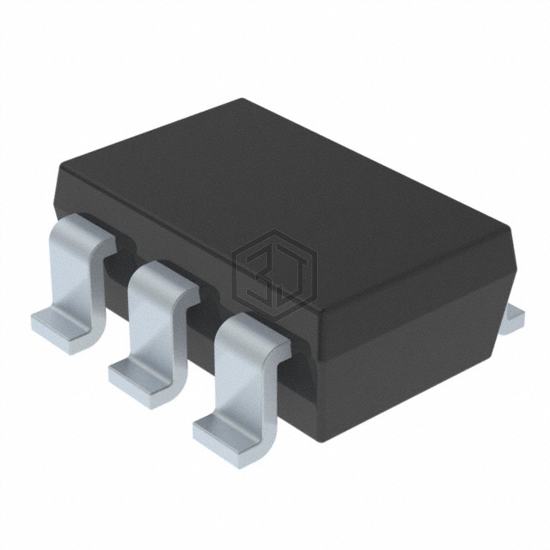

LOAD SWITCH,SOT26,T&R,3K
AP22652W6-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. LOAD SWITCH,SOT26,T&R,3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SOT-23-6.
In Stock: 2,396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.1A |
| Rds On (Typ) | 65mOhm |
| Input Type | Inverting |
| Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-26 |
| Package / Case | SOT-23-6 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP22652FDZ-7 | Diodes Incorporated | LOAD SWITCH,W-DFN2020-6,T&R,3K | 100% | View |
| AP22653W6-7 | Diodes Incorporated | LOAD SWITCH,SOT26,T&R,3K | 100% | View |
| AP2552AFDC-7 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 6DFN | 98% | View |
| AP2553AW6-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT26 | 98% | View |
| AP2553FDC-7 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 6DFN | 98% | View |
| AP2553FDC-7R | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 6UDFN | 98% | View |
Submit your RFQ for AP22652W6-7 and get a quote within 24 hours.
