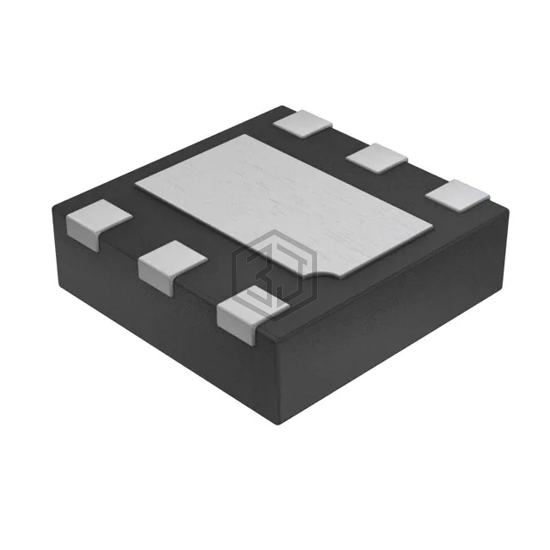

IC PWR SWITCH P-CHAN 1:1 6UDFN
AP2553FDC-7R is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHAN 1:1 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.
In Stock: 1,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.1A |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type C) |
| Package / Case | 6-UDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP2553AFDC-7 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 6DFN | 100% | View |
| AP2552W6-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT26 | 100% | View |
| AP2552AFDC-7 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 6DFN | 100% | View |
| AP2553AW6-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT26 | 100% | View |
| AP2553FDC-7 | Diodes Incorporated | IC PWR SWITCH P-CHANNEL 1:1 6DFN | 100% | View |
| AP2552AW6-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT26 | 100% | View |
Submit your RFQ for AP2553FDC-7R and get a quote within 24 hours.
