Cornell Dubilier Electronics (CDE)

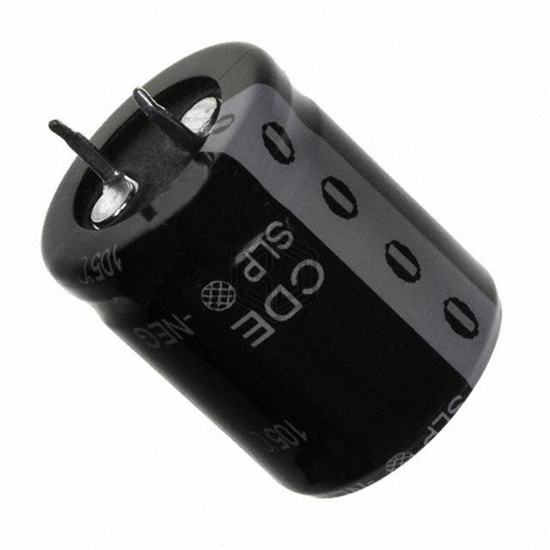

CAP ALUM 8200UF 20% 25V SNAP
SLP822M025C3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.38 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXG8200MEFCSN25X25 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 91% | View |
| LGU1V822MELB | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 88% | View |
| EKMH250VSN822MQ30U | United Chemi-Con | CAP ALUM 8200UF 20% 25V SNAP | 85% | View |
| UPA1A822MHD6 | Nichicon | CAP ALUM 8200UF 20% 10V RADIAL | 72% | View |
| LP822M050H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 71% | View |
| 381LX822M016H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V SNAP | 68% | View |
