CAP ALUM 8200UF 20% 10V RADIAL

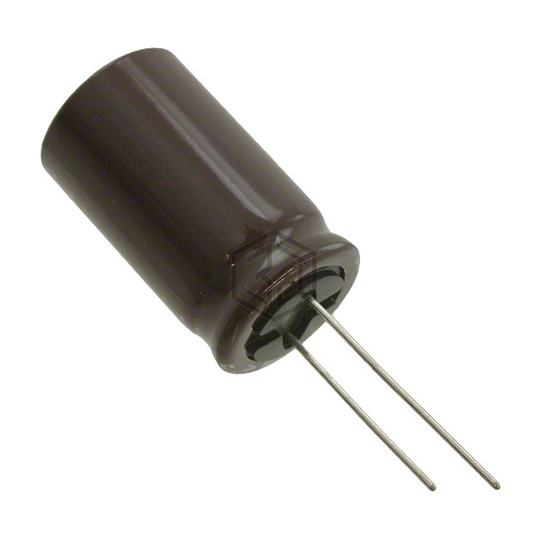

UPA1A822MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,939
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.423 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.85 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A822MHD | Nichicon | CAP ALUM 8200UF 20% 10V RADIAL | 95% | View |
| B41858C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 93% | View |
| UPA0J822MHD | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 86% | View |
| EEU-FK0J822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RAD TH | 85% | View |
| MAL225055822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 81% | View |
| THAS822M016AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V FLATPACK | 79% | View |
Submit your RFQ for UPA1A822MHD6 and get a quote within 24 hours.
