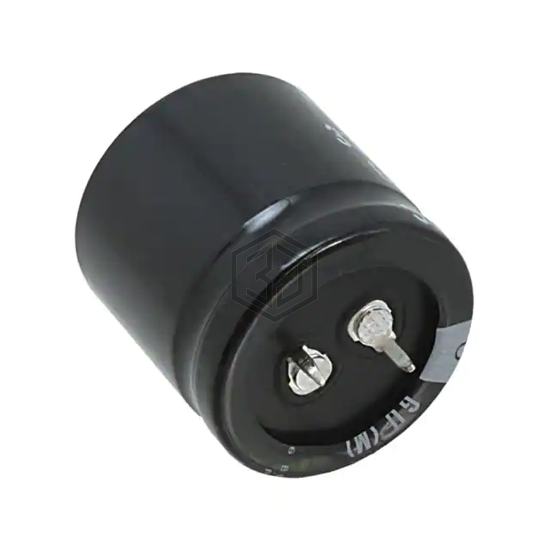

CAP ALUM 8200UF 20% 35V SNAP
LGU1V822MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1625 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP822M025C3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 25V SNAP | 88% | View |
| 25MXG8200MEFCSN25X25 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 82% | View |
| LP822M050H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 80% | View |
| EKMH250VSN822MQ30U | United Chemi-Con | CAP ALUM 8200UF 20% 25V SNAP | 76% | View |
| B41858C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 68% | View |
| 16MXC8200MEFC22X25 | Rubycon | CAP ALUM 8200UF 20% 16V SNAP | 66% | View |
Submit your RFQ for LGU1V822MELB and get a quote within 24 hours.
