Panasonic Electronic Components

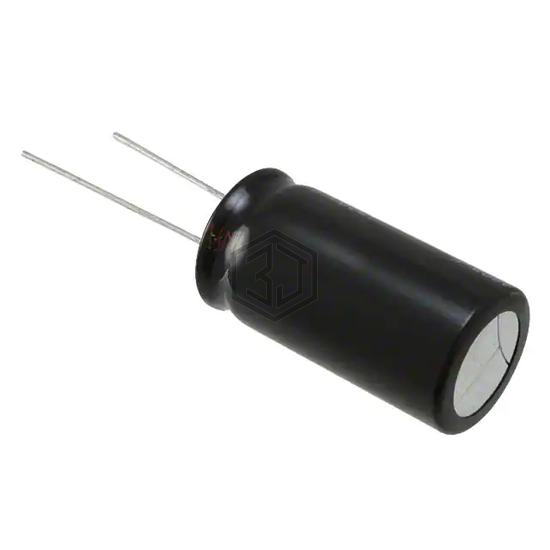

CAP ALUM 15000UF 20% 16V RADIAL
EEU-HD1C153 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,976
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.542 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW153M0JBK-1836S | Surge | CAP ALUM 6.3V POLAR | 100% | View |
| UVZ1C153MRH | Nichicon | CAP ALUM 15000UF 20% 16V RADIAL | 95% | View |
| EKMQ100ELL153MLP1S | United Chemi-Con | CAP ALUM 15000UF 20% 10V RADIAL | 81% | View |
| MALREKB05KL515C00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V RADIAL | 77% | View |
| MALREKB00KL515CG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V RADIAL | 77% | View |
| EKMQ6R3ELL153MLN3S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 68% | View |
Submit your RFQ for EEU-HD1C153 and get a quote within 24 hours.
