Cornell Dubilier Electronics (CDE)
CAP ALUM 4.7UF 20% 25V SMD

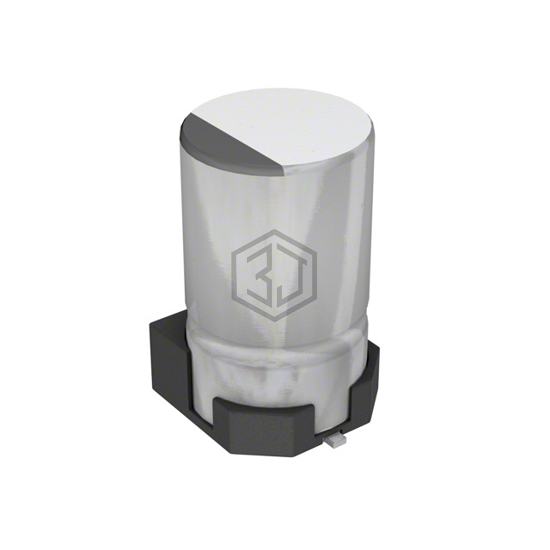

AVS475M25A12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,448
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 56.5Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 20.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS475M25A12T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALSECA00AB147EARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 25V SMD | 100% | View |
| EDK475M025A9BAA | KEMET | CAP ALUM 4.7UF 20% 25V SMD | 78% | View |
| EMVA500ADA4R7MD55G | United Chemi-Con | CAP ALUM 4.7UF 20% 50V SMD | 63% | View |
| UWZ1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 60% | View |
| UT475M100HDHTA | Aillen | CAP. ALUM 4.7UF 100V 20% SMD | 56% | View |
| EEE-HD1H4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V SMD | 52% | View |
Submit your RFQ for AVS475M25A12T-F and get a quote within 24 hours.
