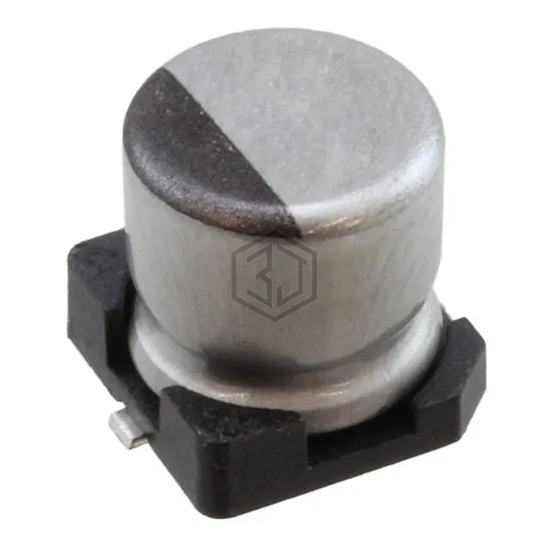

CAP ALUM 4.7UF 20% 50V SMD
UWZ1H4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,633
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 28.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 91% | View |
| UUP1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 87% | View |
| 50TZV4R7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 81% | View |
| UUA1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 81% | View |
| UT475M100HDHTA | Aillen | CAP. ALUM 4.7UF 100V 20% SMD | 71% | View |
| UUP1E4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 25V SMD | 71% | View |
Submit your RFQ for UWZ1H4R7MCL1GB and get a quote within 24 hours.
