CAP ALUM 4.7UF 20% 50V SMD

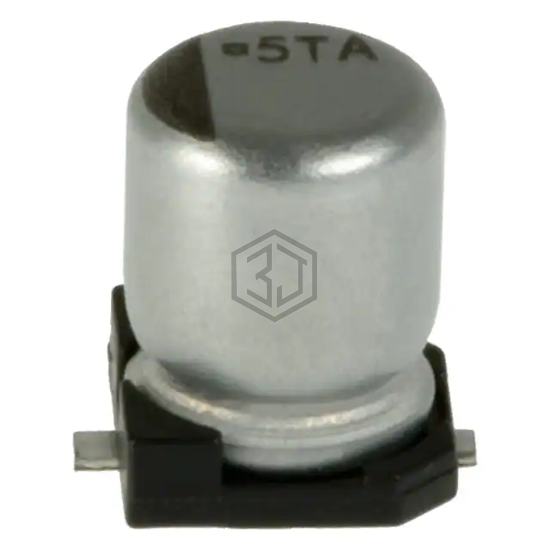

EMVA500ADA4R7MD55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 97% | View |
| AVS475M50B12T-F | Cornell Dubilier Knowles | CAP ALUM 4.7UF 20% 50V SMD | 97% | View |
| EEE-HD1H4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V SMD | 90% | View |
| UWX1V4R7MCR1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 89% | View |
| EEE-HB1H4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V SMD | 85% | View |
| UZG1E4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 25V SMD | 55% | View |
Submit your RFQ for EMVA500ADA4R7MD55G and get a quote within 24 hours.
