Cornell Dubilier Electronics (CDE)
CAP ALUM 10UF 20% 63V SMD

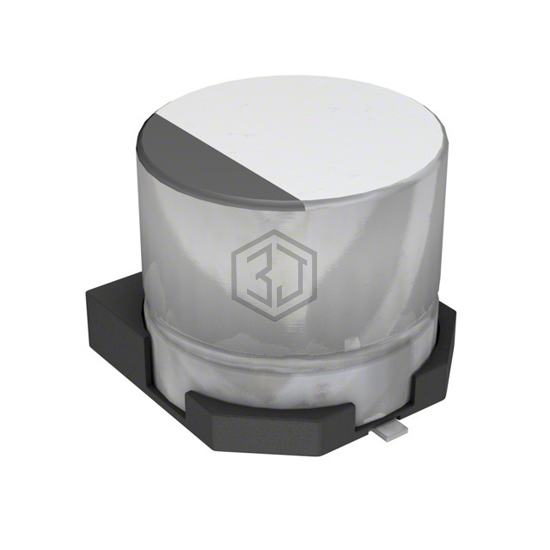

AVS106M63D16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 7,828
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 29.9Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 59.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS106M63D16T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-1HA100AP | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 93% | View |
| AVS106M50D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 93% | View |
| EEV-FK1J100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 90% | View |
| TYEH1H106F55MTR | TE Connectivity Passive Product | CAP ALUM 10UF 20% 50V SMD | 76% | View |
| EDK106M100A9MAA | KEMET | CAP ALUM 10UF 20% 100V SMD | 72% | View |
| UUL1V100MCL1GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 63% | View |
Submit your RFQ for AVS106M63D16T-F and get a quote within 24 hours.
