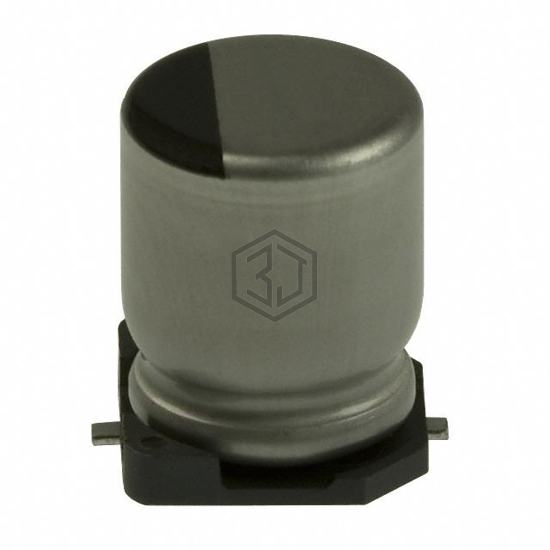

TE Connectivity Passive Product
CAP ALUM 10UF 20% 50V SMD
TYEH1H106F55MTR is a Aluminum Electrolytic Capacitors manufactured by TE Connectivity Passive Product. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,509
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 39 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES100M1HTR-0605S | Surge | CAP ALUM 50V POLAR | 98% | View |
| VEU100M1HTR-0606S | Surge | CAP ALUM 50V POLAR | 92% | View |
| UUL1V100MCL1GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 87% | View |
| AVES106M35C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 82% | View |
| EEE-FK1H100SR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 80% | View |
| MAL215097902E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 100V SMD | 56% | View |
