Cornell Dubilier Electronics (CDE)

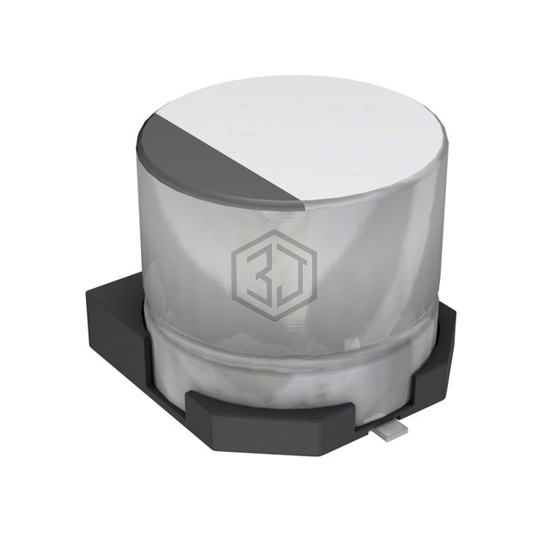

CAP ALUM 10UF 20% 50V SMD
AVS106M50D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,454
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 19.9Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 59.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS106M50D16B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-1HA100AP | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 100% | View |
| EEE-FK1H100SR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 97% | View |
| TYEH1H106F55MTR | TE Connectivity Passive Product | CAP ALUM 10UF 20% 50V SMD | 83% | View |
| 35SEV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 79% | View |
| EDK106M025S9DAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 61% | View |
| MAL215097902E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 100V SMD | 56% | View |
Submit your RFQ for AVS106M50D16B-F and get a quote within 24 hours.
