Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 200V SNAP

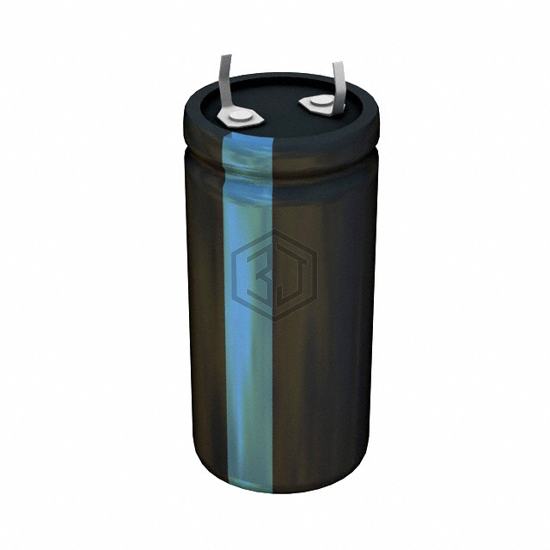

381EL561M200H452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,154
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 320mOhm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381EL561M200H452 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2D561MESA35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| LGR2E561MELC30 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| LGW2D561MELZ35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 80% | View |
| UHW1E561MPD | Nichicon | CAP ALUM 25V POLAR | 67% | View |
| ELXV500ELL561MK30S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 61% | View |
| MAL219356561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 52% | View |
Submit your RFQ for 381EL561M200H452 and get a quote within 24 hours.
