CAP ALUM 560UF 20% 200V SNAP

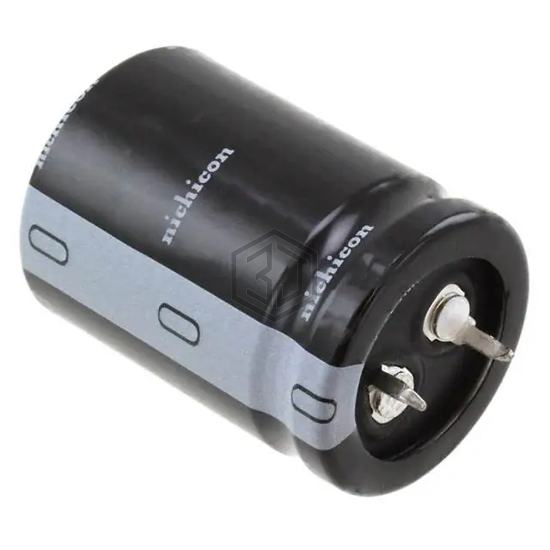

LKX2D561MESA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43644A2567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 99% | View |
| 381EL561M200H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| LP561M200H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| LGW2D561MELZ35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| MAL219356561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 57% | View |
| ELXV500ELL561MK30S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 56% | View |
