Cornell Dubilier Electronics (CDE)
CAP ALUM 5600UF 20% 100V SNAP

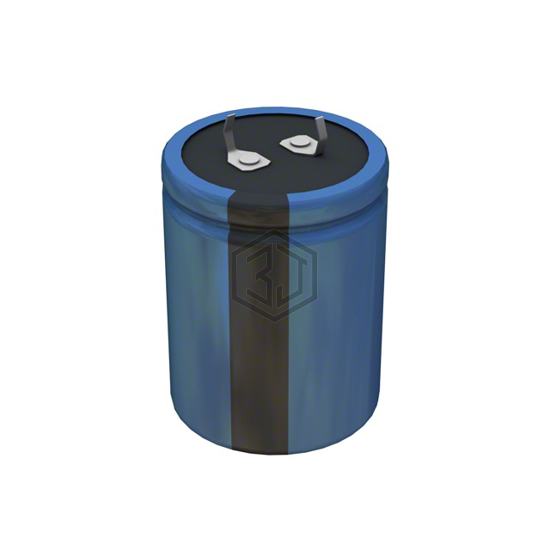

380LX562M100A452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5600UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,504
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100MXG5600MEFCSN35X45 | Rubycon | CAP ALUM 5600UF 20% 100V SNAP | 88% | View |
| LKSH2562MESB | Nichicon | CAP ALUM 5600UF 20% 71V SNAP | 72% | View |
| LLS1J562MELA | Nichicon | CAP ALUM 5600UF 20% 63V SNAP | 69% | View |
| 568LMB063M2DF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 5600UF 20% 63V SNAP | 62% | View |
| EKZN250ELL562MLP1S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 56% | View |
| SLPX562M050C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 50V SNAP | 55% | View |
Submit your RFQ for 380LX562M100A452 and get a quote within 24 hours.
