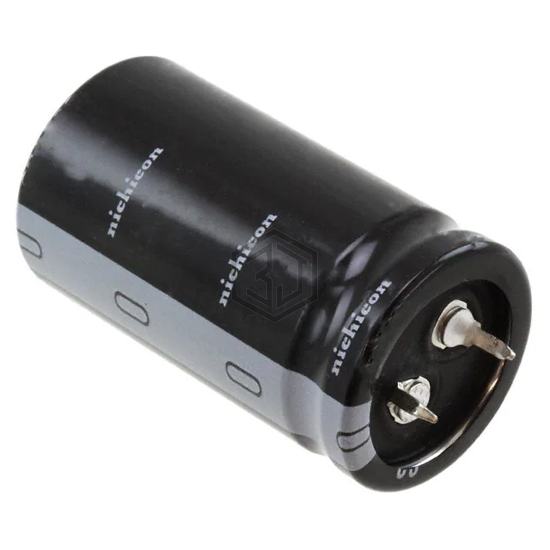

CAP ALUM 5600UF 20% 63V SNAP
LLS1J562MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.01 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.6115 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
