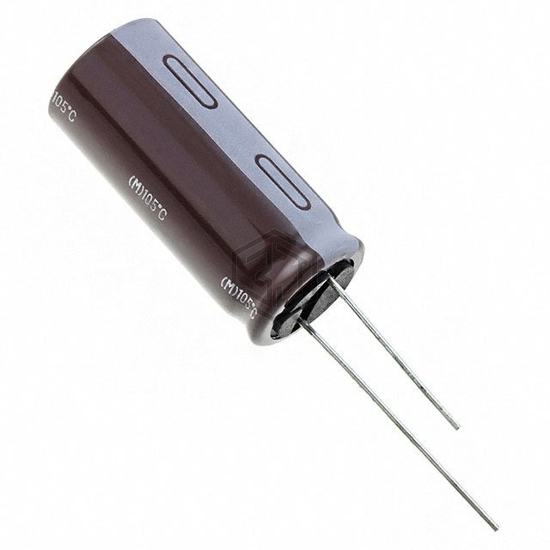

CAP ALUM 5600UF 20% 25V RADIAL
EKZN250ELL562MLP1S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,203
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.638 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.28 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1V562MHL | Nichicon | CAP ALUM 5600UF 20% 35V RADIAL | 86% | View |
| EEU-FR1C562B | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RADIAL | 82% | View |
| 381LX562M035K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V SNAP | 78% | View |
| 568LMB063M2DF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 5600UF 20% 63V SNAP | 75% | View |
| 100MXG5600MEFCSN35X45 | Rubycon | CAP ALUM 5600UF 20% 100V SNAP | 74% | View |
| UPA1C562MHD6TN | Nichicon | CAP ALUM 5600UF 20% 16V RADIAL | 68% | View |
Submit your RFQ for EKZN250ELL562MLP1S and get a quote within 24 hours.
