Cornell Dubilier / Illinois Capacitor

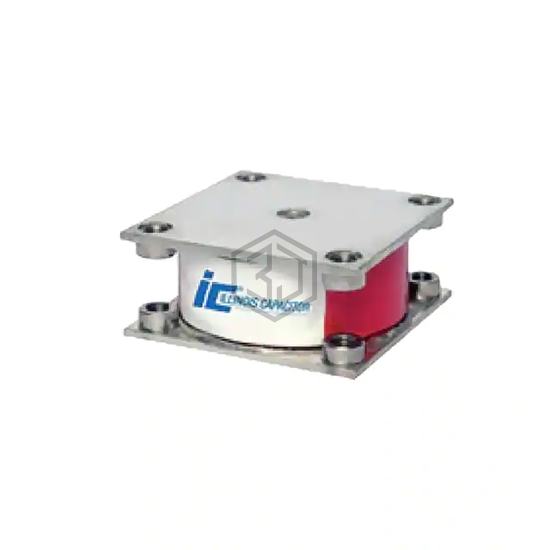

CAP FILM 0.33UF 1KVAC CHAS MT
334LC4102K5LM8 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.33UF 1KVAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 1000V (1kV), package / case Nonstandard.
In Stock: 8,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
| Height - Seated (Max) | 1.358" (34.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
