Cornell Dubilier / Illinois Capacitor

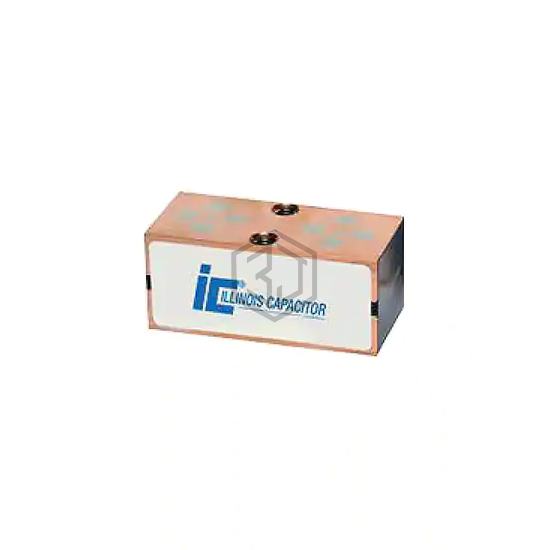

CAP FILM 0.33UF 800VAC CHAS MT
334HC2800K2CM6 is a Film Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP FILM 0.33UF 800VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage rating - ac 800V, package / case Nonstandard.
In Stock: 8,487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.33 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 0.8 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.181" W (68.00mm x 30.00mm) |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M433250JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2.5KVDC SCREW | 100% | View |
| C4BSYBX3330ZALJ | KEMET | CAP FILM 0.33UF 5% 3KVDC SCREW | 99% | View |
| 334LC3700K5LM8 | Cornell Dubilier / Illinois Capacitor | CAP FILM 0.33UF 10% 700VAC SMD | 98% | View |
| BFC238660334 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 10% 2KVDC SCREW | 98% | View |
| MKP386M433200JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.33UF 5% 2KVDC SCREW | 98% | View |
| PMB2153330KFRA | Nichicon | FILM CAP BOXED LUGS | 96% | View |
