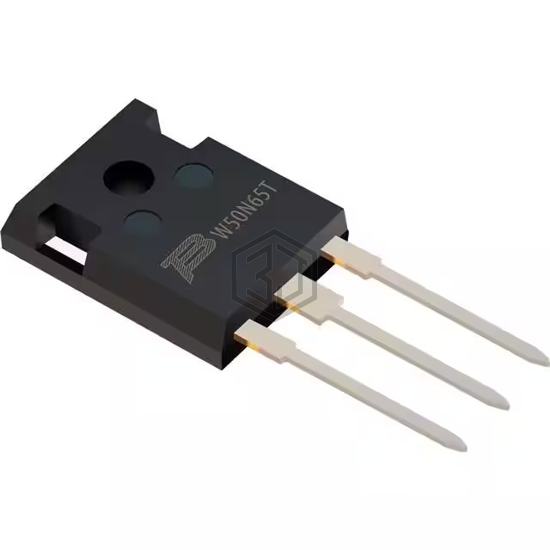

IGBT 650V 50A TRENCH TO-247-3L
BIDW50N65T is a Transistors - IGBTs - Single manufactured by Bourns Inc.. IGBT 650V 50A TRENCH TO-247-3L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 100 A.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 50A |
| Power - Max | 416 W |
| Switching Energy | 3mJ (on), 1.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 123 nC |
| Td (on/off) @ 25°C | 37ns/125ns |
| Test Condition | 400V, 50A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 37.5 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for BIDW50N65T and get a quote within 24 hours.
