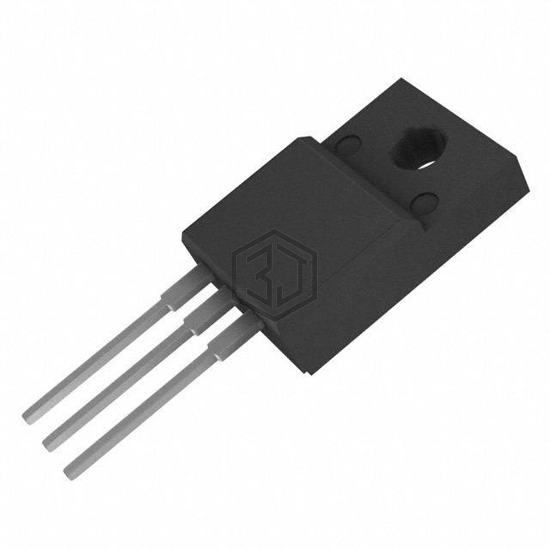

Alpha & Omega Semiconductor Inc.
IGBT 600V 10A 31.2W TO220F
AOTF5B60D is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 600V 10A 31.2W TO220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 14 A.
In Stock: 4,164
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 5A |
| Power - Max | 31.2 W |
| Switching Energy | 140µJ (on), 40µJ (off) |
| Input Type | Standard |
| Gate Charge | 9.4 nC |
| Td (on/off) @ 25°C | 12ns/83ns |
| Test Condition | 400V, 5A, 60Ohm, 15V |
| Reverse Recovery Time (trr) | 98 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F |
Submit your RFQ for AOTF5B60D and get a quote within 24 hours.
