Alpha & Omega Semiconductor Inc.
IGBT 600V 40A TO247

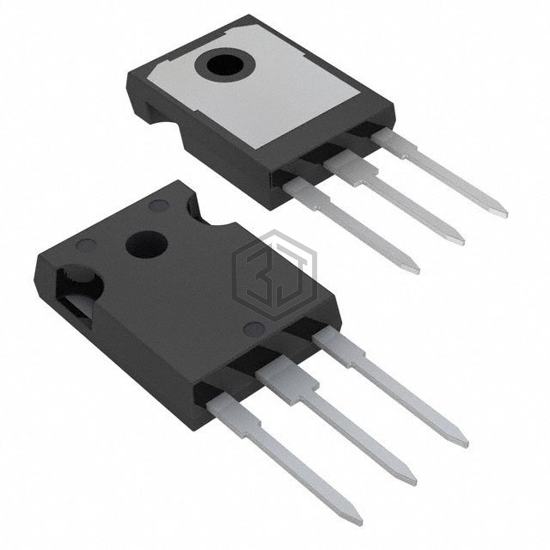

AOKS40B60D1 is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 600V 40A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 140 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 278 W |
| Switching Energy | 1.55mJ (on), 300µJ (off) |
| Input Type | Standard |
| Gate Charge | 45 nC |
| Td (on/off) @ 25°C | 29ns/74ns |
| Test Condition | 400V, 40A, 7.5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOKS40B60D1 and get a quote within 24 hours.
