Alpha & Omega Semiconductor Inc.

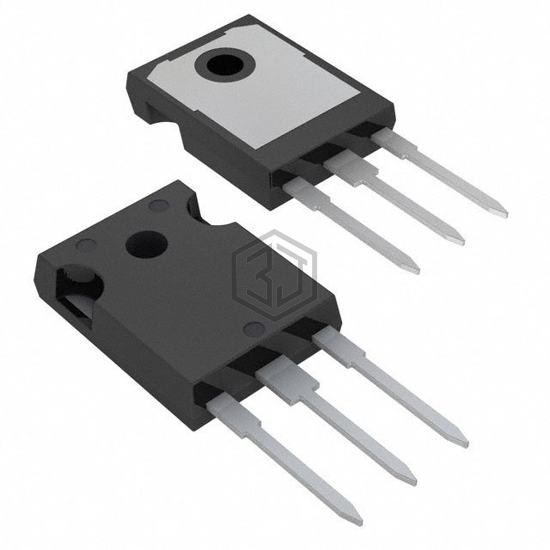

IGBT 600V 30A TO247
AOKS30B60D1 is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 600V 30A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 96 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 30A |
| Power - Max | 208 W |
| Switching Energy | 1.1mJ (on), 240µJ (off) |
| Input Type | Standard |
| Gate Charge | 34 nC |
| Td (on/off) @ 25°C | 20ns/58ns |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOKS30B60D1 and get a quote within 24 hours.
