Alpha & Omega Semiconductor Inc.

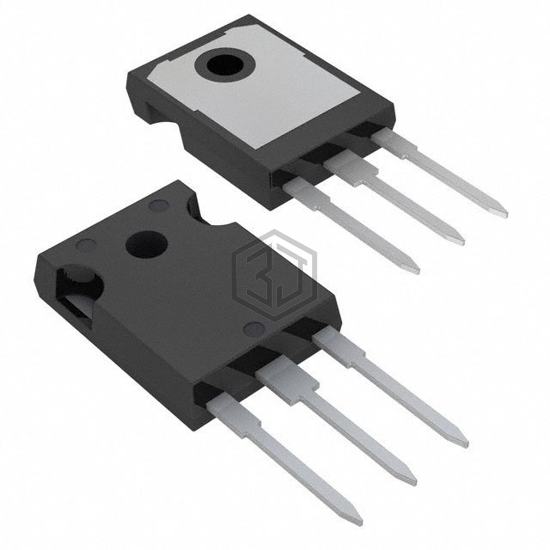

IGBT 600V 120A 417W TO247
AOK60B60D1 is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 600V 120A 417W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.
In Stock: 2,935
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 210 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 60A |
| Power - Max | 417 W |
| Switching Energy | 3.1mJ (on), 730µJ (off) |
| Input Type | Standard |
| Gate Charge | 75 nC |
| Td (on/off) @ 25°C | 32ns/74ns |
| Test Condition | 400V, 60A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 137 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOK60B60D1 and get a quote within 24 hours.
