Alpha & Omega Semiconductor Inc.

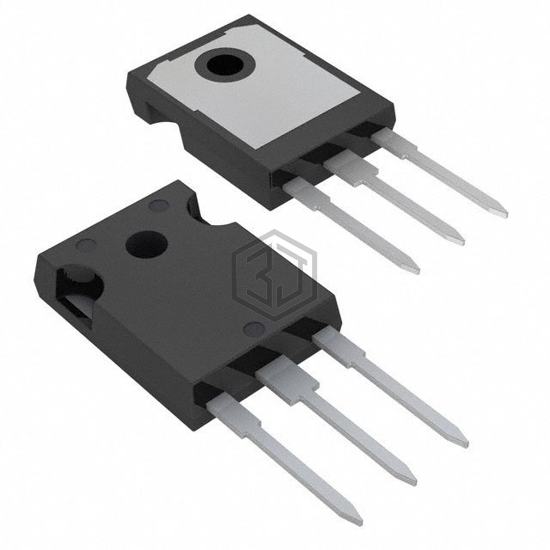

IGBT 1200V 30A TO-247
AOK30B120D2 is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 1200V 30A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.
In Stock: 9,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 30A |
| Power - Max | 340 W |
| Switching Energy | 1.28mJ (off) |
| Input Type | Standard |
| Gate Charge | 67 nC |
| Td (on/off) @ 25°C | -/115ns |
| Test Condition | 600V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOK30B120D2 and get a quote within 24 hours.
