Alpha & Omega Semiconductor Inc.

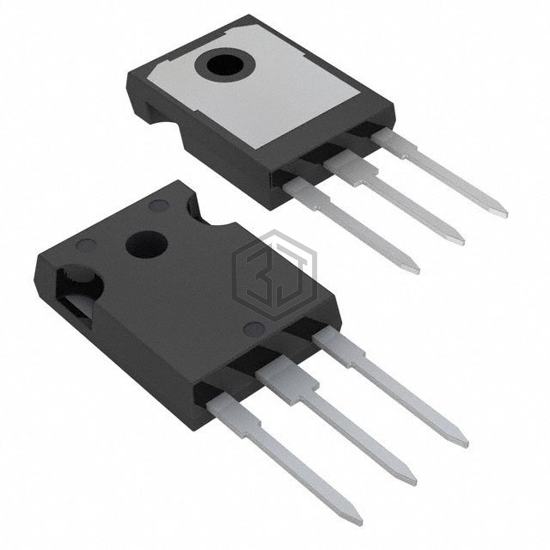

IGBT 1350V 40A 340W TO-247
AOK20B135D1 is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 1350V 40A 340W TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.
In Stock: 190
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1350 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 20A |
| Power - Max | 340 W |
| Switching Energy | 1.05mJ (off) |
| Input Type | Standard |
| Gate Charge | 66 nC |
| Td (on/off) @ 25°C | -/156ns |
| Test Condition | 600V, 20A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOK20B135D1 and get a quote within 24 hours.
