Alpha & Omega Semiconductor Inc.
IGBT 600V 30A 167W TO247

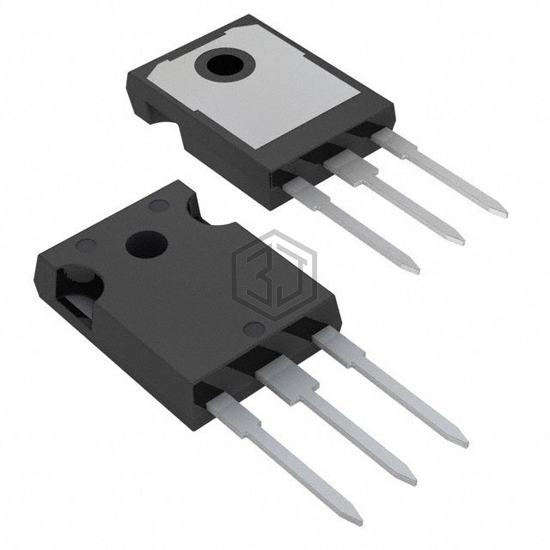

AOK15B60D is a Transistors - IGBTs - Single manufactured by Alpha & Omega Semiconductor Inc.. IGBT 600V 30A 167W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 30 A.
In Stock: 5,671
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 15A |
| Power - Max | 167 W |
| Switching Energy | 510µJ (on), 110µJ (off) |
| Input Type | Standard |
| Gate Charge | 25.4 nC |
| Td (on/off) @ 25°C | 23ns/74ns |
| Test Condition | 400V, 15A, 20Ohm, 15V |
| Reverse Recovery Time (trr) | 196 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for AOK15B60D and get a quote within 24 hours.
