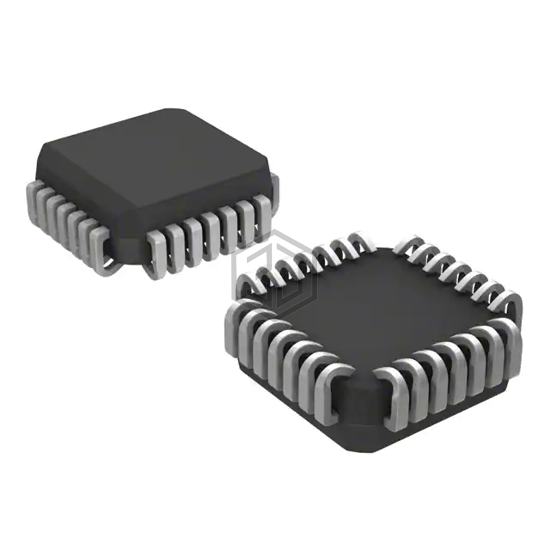

IC PWR DRIVER BIPOLAR 1:1 28PLCC
UDK2559EBTR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Allegro MicroSystems. IC PWR DRIVER BIPOLAR 1:1 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 28-LCC (J-Lead).
In Stock: 8,490
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | On/Off |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | 700mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Package / Case | 28-LCC (J-Lead) |
UDK2559EBTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UDK2559LBTR | Allegro MicroSystems | IC PWR DRIVER BIPOLAR 1:1 16SOIC | 100% | View |
| UDK2559LBTR-T | Allegro MicroSystems | IC PWR DRIVER BIPOLAR 1:1 16SOIC | 100% | View |
| CA3272Q | Harris Corporation | QUAD-GATED INVERTING POWER DRIVE | 94% | View |
| CA3272QX | Harris Corporation | INVERTING POWER DRIVER | 94% | View |
| CA3272AM | Harris Corporation | QUAD-GATED INVERTING POWER DRIVE | 69% | View |
| CA3292AM96 | Harris Corporation | QUAD-GATED INVERTING POWER DRIVE | 69% | View |
Submit your RFQ for UDK2559EBTR and get a quote within 24 hours.
