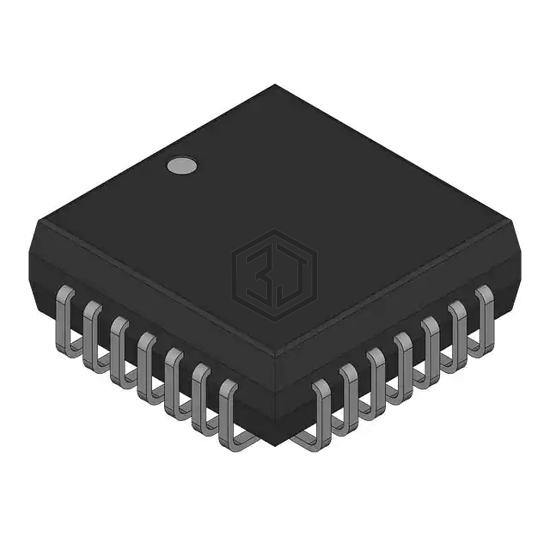

QUAD-GATED INVERTING POWER DRIVE
CA3272Q is a PMIC - Power Distribution Switches, Load Drivers manufactured by Harris Corporation. QUAD-GATED INVERTING POWER DRIVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 7V, package / case 28-LCC (J-Lead).
In Stock: 5,782
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | On/Off |
| Voltage - Load | 60V |
| Voltage - Supply (Vcc/Vdd) | 7V |
| Current - Output (Max) | 600mA |
| Rds On (Typ) | - |
| Input Type | Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Package / Case | 28-LCC (J-Lead) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CA3272QX | Harris Corporation | INVERTING POWER DRIVER | 100% | View |
| UDK2559LB | Allegro MicroSystems | IC PWR DRIVER BIPOLAR 1:1 16SOIC | 94% | View |
| CA3272AM | Harris Corporation | QUAD-GATED INVERTING POWER DRIVE | 75% | View |
| CA3292AM96 | Harris Corporation | QUAD-GATED INVERTING POWER DRIVE | 75% | View |
| MIC58P01YWM | Microchip Technology | IC PWR DRIVER BIPOLAR 1:1 24SOIC | 56% | View |
| MIC58P42YWM | Microchip Technology | IC PWR DRIVER BIPOLAR 1:8 18SOP | 52% | View |
Submit your RFQ for CA3272Q and get a quote within 24 hours.
