IC MOTOR DRIVER 18V 16QFN

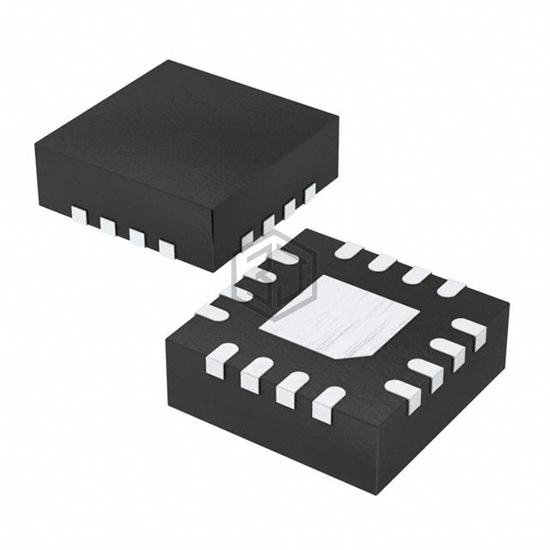

AP1013DEN is a PMIC - Full, Half-Bridge Drivers manufactured by Asahi Kasei Microdevices/AKM. IC MOTOR DRIVER 18V 16QFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 150°C (TJ), voltage - supply 2.7V ~ 5.5V, package / case 16-UFQFN Exposed Pad.
In Stock: 5,461
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (2) |
| Applications | General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 1.3A |
| Current - Peak Output | 5A |
| Voltage - Supply | 2.7V ~ 5.5V |
| Voltage - Load | 2V ~ 18V |
| Operating Temperature | -30°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
AP1013DEN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP1013CEN | Asahi Kasei Microdevices/AKM | IC MOTOR DRIVER 18V 16QFN | 100% | View |
| MAX256ASA+ | Analog Devices Inc./Maxim Integrated | IC DVR H-BRIDGE 3W 8-SOIC | 81% | View |
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 81% | View |
| NJW4814MLE-TE1 | Nisshinbo Micro Devices Inc. | DUAL H-BRIDGE DRIVER WITH BOOST | 78% | View |
| LV11961HA-AH | onsemi | IC MOTOR DRIVER 18V 14HSSOP | 74% | View |
| LA6583MC-AH | onsemi | IC MOTOR DRIVER ON/OFF 10MFPSK | 74% | View |
Submit your RFQ for AP1013DEN and get a quote within 24 hours.
