VERTICAL, 0.5PITCH,ZI,FPC/FFC CO

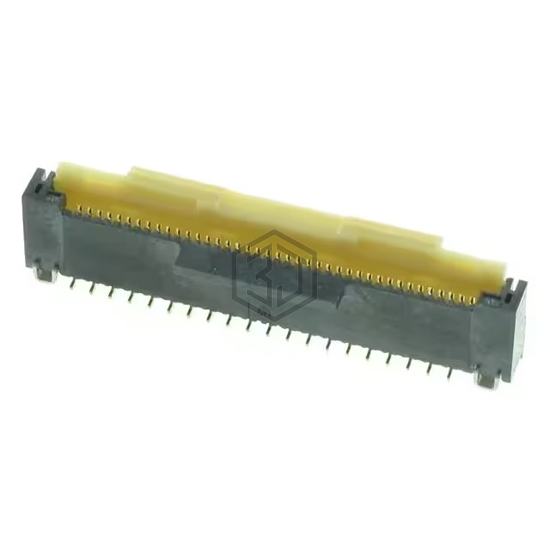

HF601-30-12 is a FFC, FPC (Flat Flexible) Connectors manufactured by Yamaichi Electronics. VERTICAL, 0.5PITCH,ZI,FPC/FFC CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 30 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | - |
| Contact Material | Copper Alloy |
| Contact Finish | Gold-Nickel |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA9T), Nylon 9T |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for HF601-30-12 and get a quote within 24 hours.
