TE Connectivity AMP Connectors

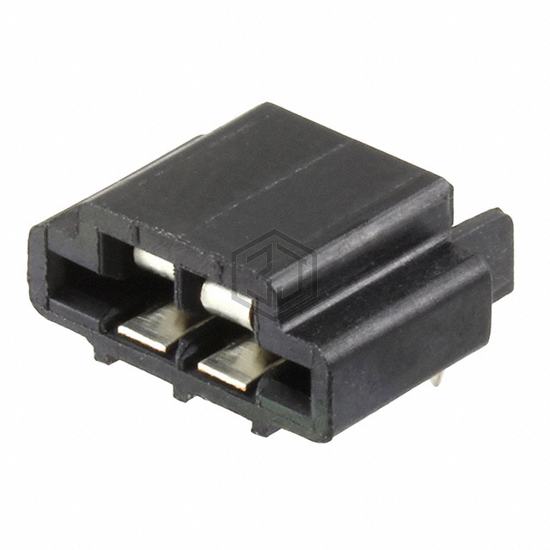

CONN FFC FPC TOP 5POS 2.54MM R/A
5-520314-5 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC FPC TOP 5POS 2.54MM R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 250V, housing material Polyester Thermoplastic, Glass Filled.
In Stock: 12,224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 5 |
| Pitch | 0.100" (2.54mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.190" (4.83mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 250V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 5-520314-5 and get a quote within 24 hours.
