AUTOMOTIVE PRESS-RELEASE FFC/FPC

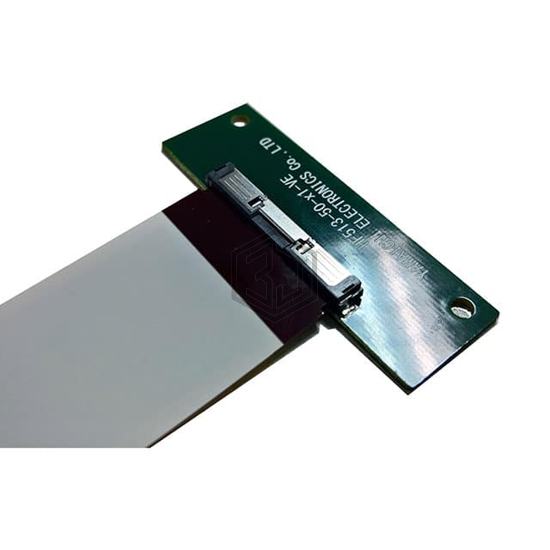

HF513-50-01-VE is a FFC, FPC (Flat Flexible) Connectors manufactured by Yamaichi Electronics. AUTOMOTIVE PRESS-RELEASE FFC/FPC. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.116" (2.95mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold-Nickel |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | - |
Submit your RFQ for HF513-50-01-VE and get a quote within 24 hours.
