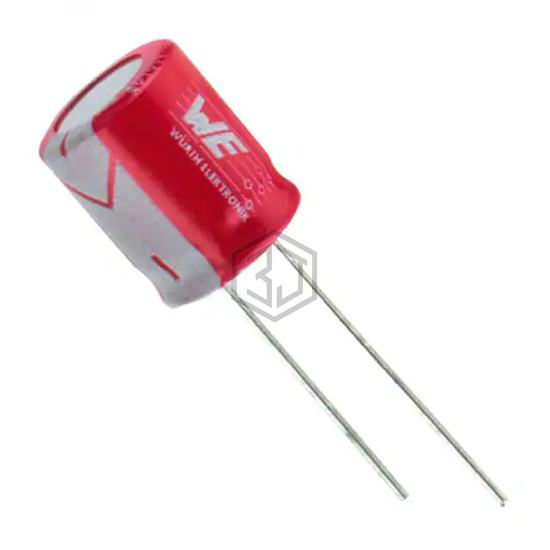

CAP ALUM POLY 150UF 20% 35V T/H
870235675007 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 150UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,636
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 157ALG035MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 35V T/H | 92% | View |
| UGV1V151MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 87% | View |
| 157AVG035MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 35V T/H | 85% | View |
| RNU1V151MDN1 | Nichicon | CAP ALUM POLY 150UF 20% 35V T/H | 83% | View |
| APS-200ELL151MJC5S | United Chemi-Con | CAP ALUM POLY 150UF 20% 20V T/H | 74% | View |
| RHT1D151MDN1PH | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 62% | View |
