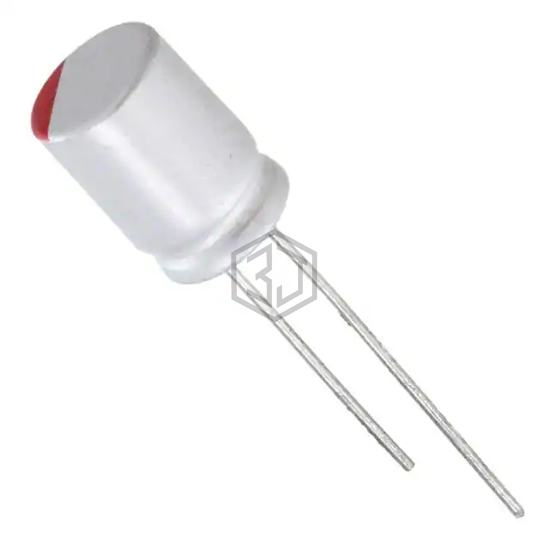

CAP ALUM POLY 150UF 20% 20V T/H
RHT1D151MDN1PH is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 4,751
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 435 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.35 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RHT1D151MDN1 | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 100% | View |
| PLX1D151MDL1TD | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 79% | View |
| PLX1D151MDL1 | Nichicon | CAP ALUM POLY 150UF 20% 20V T/H | 79% | View |
| PLX1C151MCL1 | Nichicon | CAP ALUM POLY 150UF 20% 16V T/H | 67% | View |
| PLX1C151MCL1TD | Nichicon | CAP ALUM POLY 150UF 20% 16V T/H | 67% | View |
| A759MS157M1VAAE030 | KEMET | CAP ALUM POLY 150UF 20% 35V T/H | 66% | View |
Submit your RFQ for RHT1D151MDN1PH and get a quote within 24 hours.
