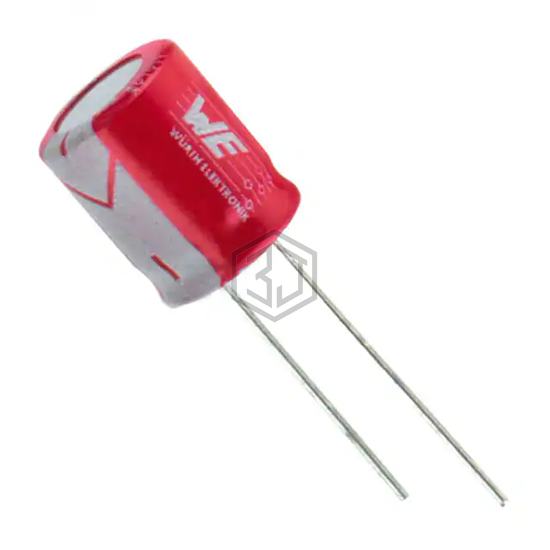

CAP ALUM POLY 220UF 20% 16V T/H
870235374004 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 220UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 227ULR016MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 92% | View |
| A758KK227M1AAAE014 | KEMET | CAP ALUM POLY 220UF 20% 10V T/H | 79% | View |
| 227ULR016MEH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 76% | View |
| A750EK227M1CAAE016 | KEMET | CAP ALUM POLY 220UF 20% 16V T/H | 73% | View |
| 227ULR010MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 10V T/H | 63% | View |
| RNS0J221MDN1KX | Nichicon | CAP ALUM POLY 220UF 20% 6.3V T/H | 62% | View |
Submit your RFQ for 870235374004 and get a quote within 24 hours.
