Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 220UF 20% 16V T/H

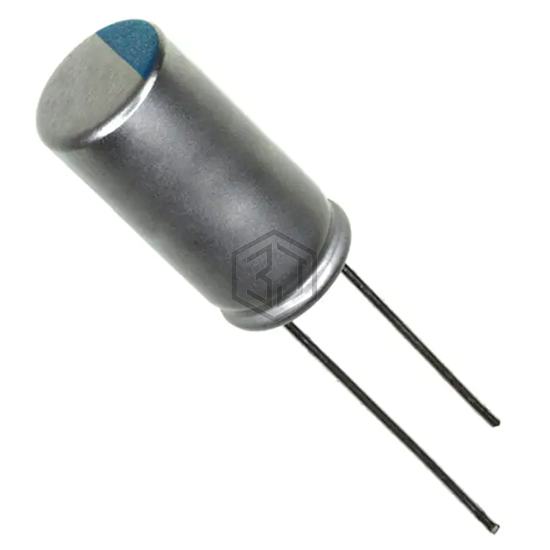

227ULR016MEH is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 220UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 155 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A750EK227M1CAAE016 | KEMET | CAP ALUM POLY 220UF 20% 16V T/H | 97% | View |
| 227ULR016MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 84% | View |
| 227ULR010MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 10V T/H | 84% | View |
| 227UER016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 220UF 20% 16V T/H | 84% | View |
| UGV1E221MP51007U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 78% | View |
| 870235374004 | Würth Elektronik | CAP ALUM POLY 220UF 20% 16V T/H | 76% | View |
Submit your RFQ for 227ULR016MEH and get a quote within 24 hours.
