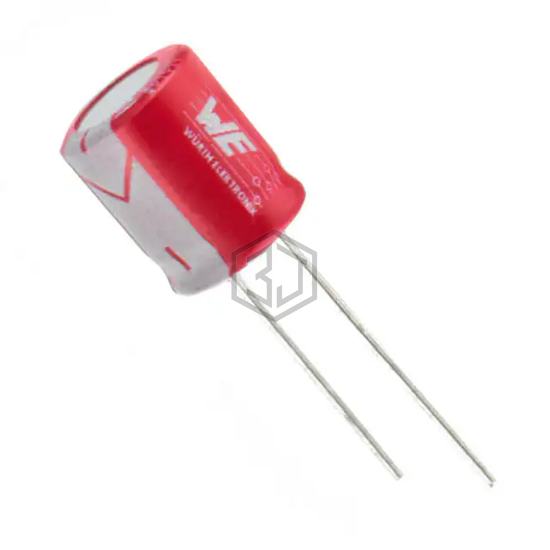

CAP ALUM POLY 56UF 20% 35V T/H
870135674002 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 56UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63SXE56M+S | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V TH | 78% | View |
| 63SXE56M+3 | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V TH | 78% | View |
| 80SXE56M | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 80V T/H | 77% | View |
| 80SXE56M+3 | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 80V TH | 77% | View |
| RS61E560MCN1 | Nichicon | CAP ALUM POLY 56UF 20% 25V T/H | 73% | View |
| RS61E560MCN1JT | Nichicon | CAP ALUM POLY 56UF 20% 25V T/H | 73% | View |
