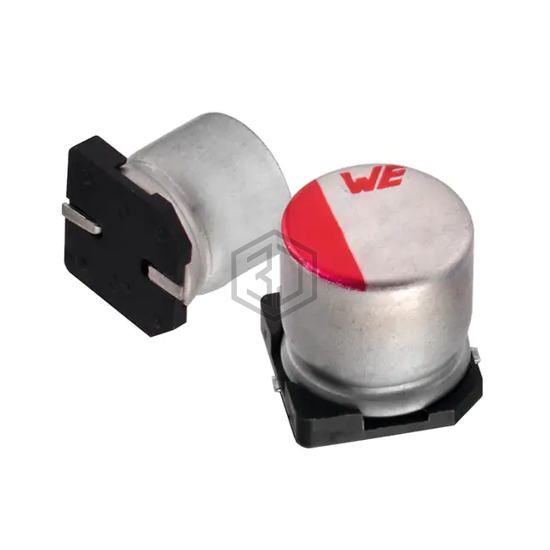

CAP ALUM 4.7UF 20% 50V SMD
865250642008 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,581
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD050M4R7C06PA | Lumimax Optoelectronic Technology | CAP ALUM 4.7UF 20% 50V SMD | 100% | View |
| MAL215371478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 50V SMD | 95% | View |
| VES4R7M1HTR-0505S | Surge | CAP ALUM 50V POLAR | 91% | View |
| 475SML035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 89% | View |
| EMVE350ADA4R7MD55G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 78% | View |
| UWD1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 57% | View |
Submit your RFQ for 865250642008 and get a quote within 24 hours.
