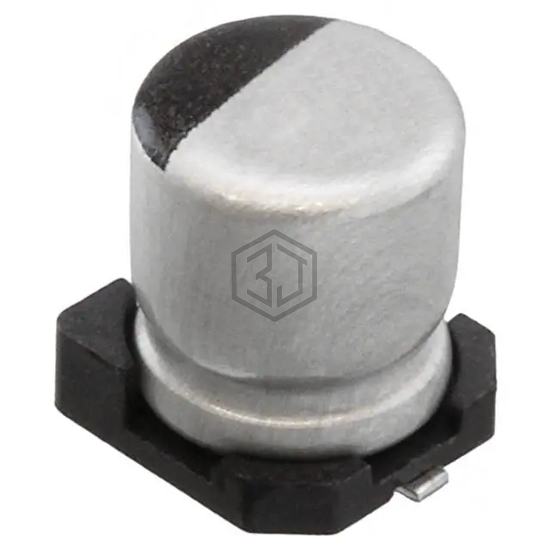

CAP ALUM 4.7UF 20% 50V SMD
UWD1H4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,805
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 100 kHz |
| Impedance | 1.52 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD050M4R7C06PA | Lumimax Optoelectronic Technology | CAP ALUM 4.7UF 20% 50V SMD | 85% | View |
| VZH4R7M1VTR-0406S | Surge | CAP ALUM 35V POLAR | 82% | View |
| UZ475M050HCHTA | Aillen | CAP ALUM 4.7UF 20% 50V SMD | 80% | View |
| VZL4R7M1VTR-0406S | Surge | CAP ALUM 35V POLAR | 80% | View |
| MAL215371478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 50V SMD | 70% | View |
| 50SGV4.7M5X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 55% | View |
Submit your RFQ for UWD1H4R7MCL1GS and get a quote within 24 hours.
