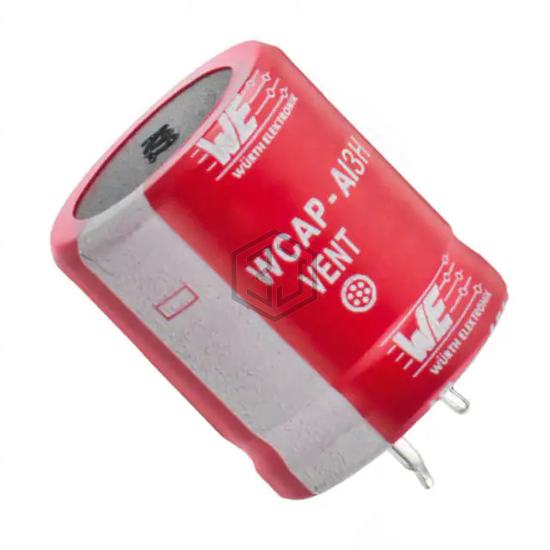

CAP ALUM 470UF 20% 400V SNAP
861141386025 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,732
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.622 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2W471MELC45 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| EKMH451VNN471MA50S | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 93% | View |
| LGG2W471MELB45 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 88% | View |
| 160TXW470MEFR16X40 | Rubycon | CAP ALUM 470UF 20% 160V RADIAL | 69% | View |
| ELXM201VSN471MQ30S | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 67% | View |
| 381LX471M180J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 180V SNAP | 65% | View |
Submit your RFQ for 861141386025 and get a quote within 24 hours.
