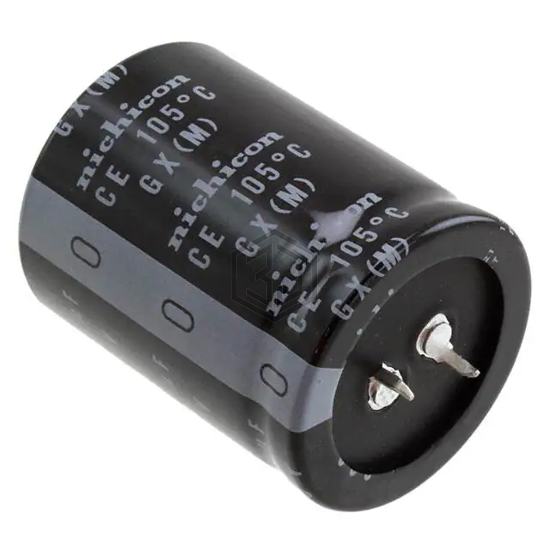

CAP ALUM 470UF 20% 450V SNAP
LGX2W471MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.83 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6169 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 861141386025 | Würth Elektronik | CAP ALUM 470UF 20% 400V SNAP | 95% | View |
| LGG2W471MELB45 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 92% | View |
| ELXM201VSN471MQ30S | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 68% | View |
| 381LX471M180J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 180V SNAP | 66% | View |
| ALA8DF471CF400 | KEMET | CAP ALUM 470UF 20% 400V SNAP | 65% | View |
| B41896C7477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 60% | View |
