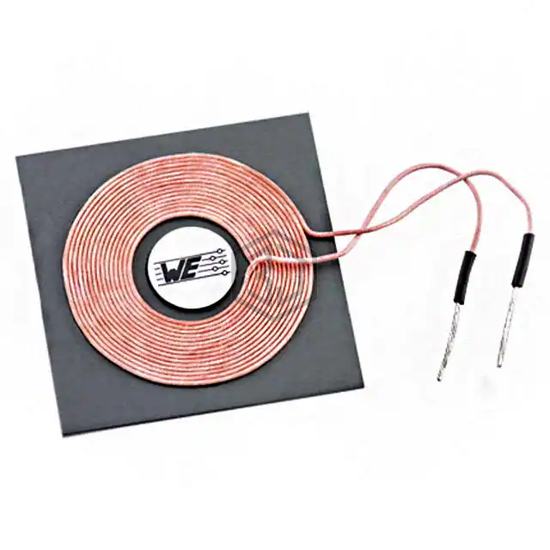

RX 1 COIL 1 LAYER 10UH 4.5A
760308201 is a Wireless Charging Coils manufactured by Würth Elektronik. RX 1 COIL 1 LAYER 10UH 4.5A. Key specifications: operating temperature -20°C ~ 105°C, current rating (amps) 3.5A, size / dimension 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm), tolerance ±5%.
In Stock: 348
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 10µH |
| Tolerance | ±5% |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 50 @ 125kHz |
| Current Rating (Amps) | 3.5A |
| Current - Saturation (Isat) | 8A |
| Frequency - Self Resonant | 15MHz |
| Operating Temperature | -20°C ~ 105°C |
| Size / Dimension | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
Submit your RFQ for 760308201 and get a quote within 24 hours.
